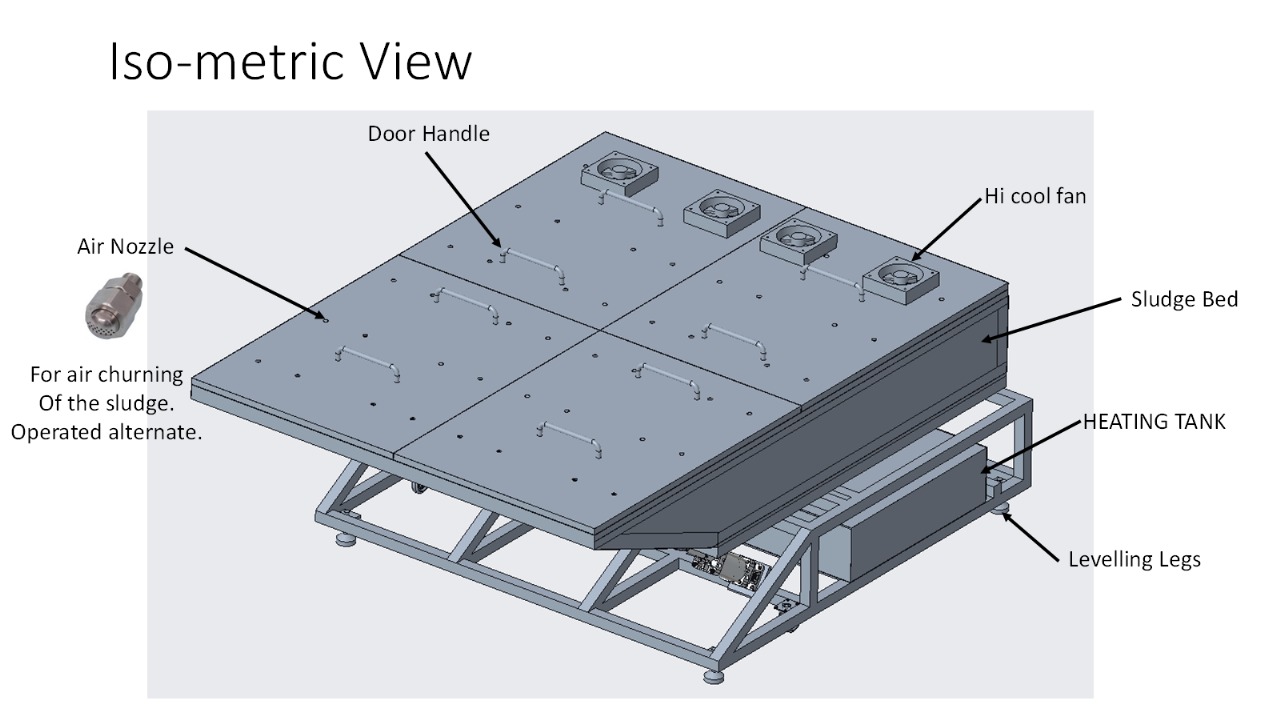

Sludge Dryer
Sludge Dryer Specification
Dimension (LXWXH) mm : 2250x1100x1450 mm
System Weight : 800 kg
Sludge Drying Capacity : 500 kg
Drying : Water Content removal from 80 % to 20 % (or less with higher drying period)
MOC
Fan : Steel Powder Coated
Drying Bed : Inside Sheet: SS-304 and Outer Sheet: MS powder coated
Heating Coil : SS-304
Heat Storage Tank : Inside Sheet: SS-304 and Outer Sheet: MS powder coated
Control Panel : MS Powder Coated
Circulation Pump : 24 V DC Pump
Key Sub Systems
• Dryer
• Heating system
• Material Handling system
• Instrumentation and measurements
IOT
• Cloud-based data monitoring system, along with an overall dashboard system, includes daily dry capacity, energy used for heat generated by the system, and heat delivered for sludge drying data log.
• Remote system for daily monitoring
Since its inception in 2015, QUADSUN has been originating sustainable energy systems that embody several breakthroughs in optics, mechanics, thermodynamics, power electronics and tracking algorithms. Economical, reliable and highly efficient solutions tested over several thousand hours, to ensure trouble-free clean power and proven longevity of life across several applications.
